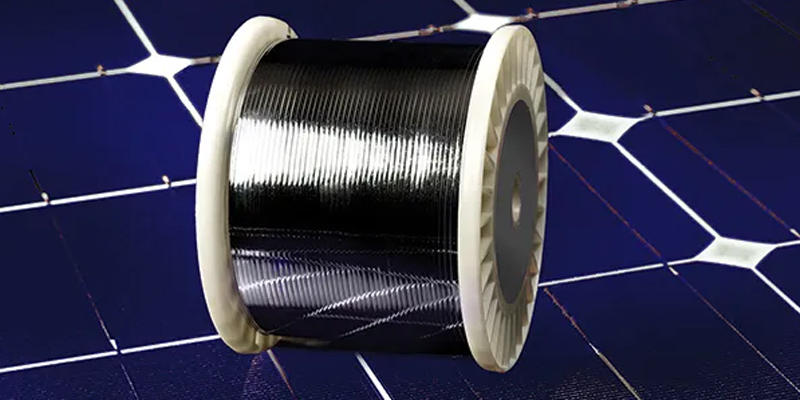

PV INTERCONNECT FLAT RIBBON & BUSBAR Range
PV INTERCONNECT FLAT RIBBON & BUSBAR Range
| Interconnect Flat Ribbon | Busbar | ||||
|---|---|---|---|---|---|
| Width | 0.5 MM TO 1.8 MM | 3.0 mm to 8.00 mm | As Per Customer Requirement | ||
| Thickness | 0.1 MM TO 0.5 MM | ||||
| Standard coating | 15µm TO 25 µm (per side) | ||||
| LEADED COATING | 60 SN/40PB 62SN/36PB/2Ag |
||||
| LEADED FREE COATING | 100 Sn Sn96.5/Ag 3.5 Sn95.5/Ag4.0/Cu0.5 |
||||
| Camber | ≤ 3 mm / 1000 mm | ||||
| Softness | Tensile strength | Yield strength | Elongation | ||
| Flexiable | 150 N/MM2 To 200 N/MM2 | ≤ 70 | ≥ 25 % | ||
| Super Flexiable | ≤ 60 | ≥ 30 % | |||
| Extrem Flexiable | ≤ 55 | ≥ 35 % | |||
| TOLERANCE | |||
|---|---|---|---|
| Testing Name | Interconnect Ribbon (Flate) | Busbar | |
| Width | ± 0.1 mm | ± 0.2 mm | |
| Thickness | ± 0.05 mm | ||
| Coating Thickness | ≤1.707 X 10 Ωmm @ 20 C | ||
| Coating type | Thickness of coating can vary from 0.010 mm to 0.050 mm | ||
| Specifications of the solder coating | ||
|---|---|---|
| Interconnect Ribbon (Flat) | Busbar | |
| Tin Coat Thickness | ≥20µm(** other thickness is Available on request) | |
| Tin Coat thickness error | ± 0.005 mm | ±0.009 mm |
| Type of Coating& Composition | Curing temperature(*C) | Liquefaction Temperature(*C) |
| Leaded (Non RoHs)-60sn40pb | 183˚C | 190˚C |
| Leaded (Non RoHS)-62Sn36pb2Ag | 179˚C | 189˚C |
| RoHS Complianced Lead Free-96.55n3.5Ag/Sn100/SnAgCu | 221˚C | 221˚C |
